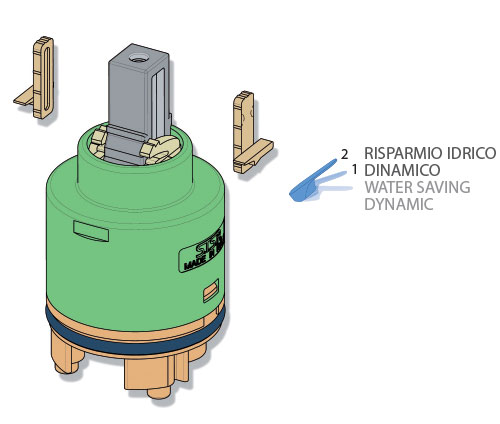

ST179

Ø40 closed type cartridge
with distributor and
dinamic water saving device

MAIN DATA

• Closed type cartridge
• Ø 40 mm
• Lever opening angle 25° (0°-25°)
• Lever mixing rotation 110°

• Recommended temperature range from 15° C to 65° C

• Water outlet bottom side (distributor)
• Designed to be comply to:
o EN 817
o ASME A112.18.1

o NF 077/03 "C1"
• Fixing ring torque 10 Nm

Information related to flow-rate and noise with the various resistances have to be measured from time to time with tap where the cartridge must be used.



OPTIONALS

• Version with the one pin bottom (ST198)

•
•
•
•
•

Dimensional features, technical data and optionals may change without notice as STSR carries on a constant activity of research, evolution and adaptation to the rules requirements of its products.
