ST241A000000000

Ø35 closed type cartridge,
flat bottom



CLICK TO SEE THE
CARTRIDGE ST241A000000A00
WITH NON SYMMETRIC MIXING

MAIN DATA

• Closed type cartridge
• Ø 35 mm
• Lever opening angle 25° (0°-25°)
• Lever mixing rotation 100°
• Recommended temperature range from 15° C to 65° C
• Water outlet bottom side
• Designed to be comply to:
o EN 817
o ASME A112.18.1
o NF 077/03 "C1"
• Fixing ring torque 10 Nm

Information related to flow-rate and noise with the various resistances have to be measured from time to time with tap where the cartridge must be used.

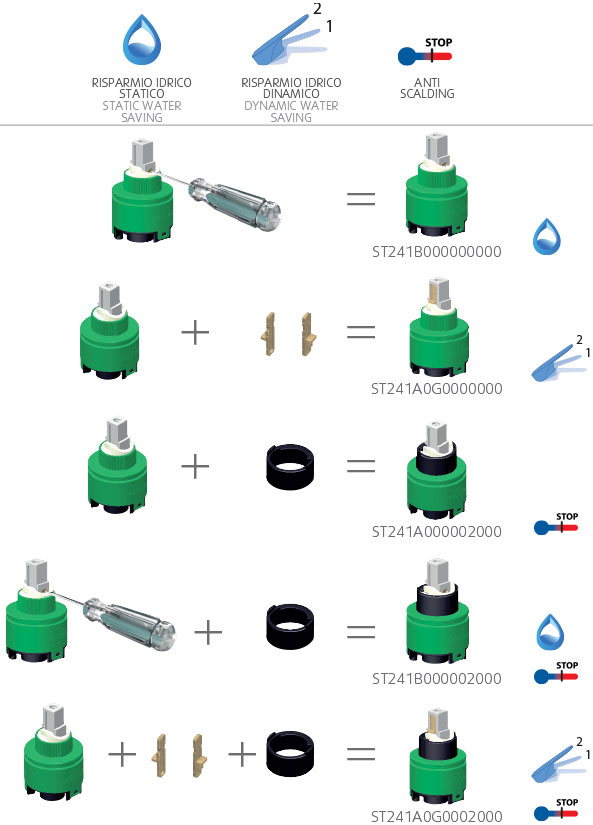

OPTIONALS

Static water saving device
Dinamic water saving device, NF 077/03 "C2" comply
Antiscalding device
Energy saving configuration, NF 077/03 "C3" comply

•
•
•
•

Dimensional features, technical data and optionals may change without notice as STSR carries on a constant activity of research, evolution and adaptation to the rules requirements of its products.
