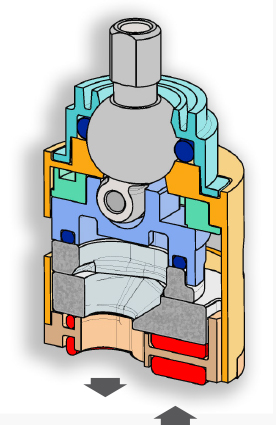

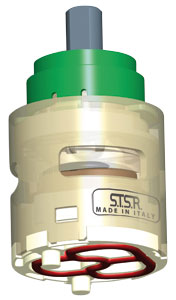

ST302

Ø25 closed type cartridge
with bottom pins

MAIN DATA

• Closed type cartridge
• Ø 25mm
• Lever opening angle 25° (12,5° + 12,5°)
• Lever mixing rotation 100°
• Recommended temperature range from 15° C to 65° C
• Water outlet bottom side
• Designed to be comply to EN 817
• Fixing ring torque mechanical stop

Information related to flow-rate and noise with the various resistances have to be measured from time to time with tap where the cartridge must be used.

OPTIONALS

• Plastic fixing adapter for handle with 9x9 mm seat
• Metal fixing adapter for handle with 9x9 mm seat
• Ball lever in vertical position when closed (0°-25°)
• Customizable handle connection
• Hi-pressure version
• Different bottom pins setting version (5mm)

•
•
•
•

Dimensional features, technical data and optionals may change without notice as STSR carries on a constant activity of research, evolution and adaptation to the rules requirements of its products.
